Multi-function vertical prick type extraction tank is commonly used in medicine, biology, food, chemical leaching extraction equipment. Can provide the material of water extraction, alcohol extraction solvents in volatile oil extraction and recycling dross, applicable to the diacolation, warm immersion, reflux, circulation impregnation, pressure or reduced pressure leaching and so on the many kinds of craft. It has the advantages of high efficiency, easy to operate.
Directory
- Usages of Multi-function Vertical Prick Type Extraction Tank
- Characteristics of Multi-function Vertical Prick Type Extraction Tank
- Technical Parameters of Multi-function Vertical Prick Type Extraction Tank
- Multi-function Vertical Prick Type Extraction Tank Finished Picture
Usages of Multi-function Vertical Prick Type Extraction Tank
This extraction equipment is to service at such industries as China traditional drug, foodstuff and chemistry for the technologies such as normal pressure, mini pressure, water decocting, and warm immersion, thermal circumfluence, compelled recycle and leakage, extraction of aroma oil and reclamation of organic.
Characteristics of Multi-function Vertical Prick Type Extraction Tank
1. The traditional form, the construction of the space is lesser, widely used for extracting workshop.
2. Slag on the door has a bottom heating, make medicinal herbs extract more completely.
3. To improve the way of produced liquid and increase after mixing device can be applied to dynamic extraction system.
4. With high efficiency and convenient operation.
5. CIP cleaning system inside the tank comply with GMP standard
2. Slag on the door has a bottom heating, make medicinal herbs extract more completely.
3. To improve the way of produced liquid and increase after mixing device can be applied to dynamic extraction system.
4. With high efficiency and convenient operation.
5. CIP cleaning system inside the tank comply with GMP standard
Technical Parameters of Multi-function Vertical Prick Type Extraction Tank
|
Style No |
TQ-1000 |
TQ-2000 |
TQ-3000 |
TQ-6000 |
TQ-8000 |
TQ-10000 |
|
Volume |
1200 |
2300 |
3200 |
6300 |
8500 |
11000 |
|
Tank design pressure(MPA) |
0.09 | |||||
|
Jacketed layer design pressure(MPA) |
0.3 | |||||
|
Feed orifices diameters(mm) |
400 |
400 |
400 |
500 |
500 |
500 |
|
Heating area (㎡) |
3 |
4.7 |
6.8 |
10 |
12 |
15 |
|
Condensation area (㎡) |
4 |
5.4 |
8 |
10 |
15 |
18 |
|
Cooling area(㎡) |
1 |
1 |
1.5 |
2.2 |
2.2 |
2.2 |
|
Filter area(㎡) |
0.25 |
0.25 |
0.25 |
0.3 |
0.3 |
0.36 |
|
Slag discharge door diameters(㎡) |
800 |
800 |
800 |
1000 |
1000 |
1000
|
|
Gas consumption（kg/h） |
285 |
346 |
570 |
718 |
903 |
1140 |
|
Equipment weight（kg） |
1800 |
2050 |
2400 |
3025 |
4030 |
6500 |
|
Heating steam orifices |
DN-50 |
DN-50 |
DN-60 |
DN-60 |
DN-80 |
DN-80 |
|
Secondary orifices |
DN-80 |
DN-80 |
DN-100 |
DN-100 |
DN-100 |
DN-100 |
|
Cooling water orifices |
DN-50 |
DN-50 |
DN-60 |
DN-70 |
DN-70 | |
|
Motor power(KW) |
2.2 |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Stirring speed(rpm) |
21 |
21 |
32 |
32 |
32 |
32 |
Notes:
Technical parameters of extracting tank can be adjusted according to the actual working condition of physical properties.

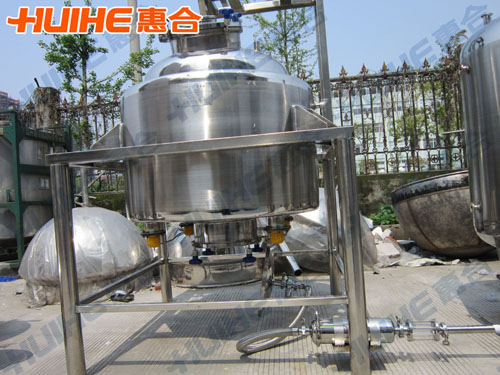

Multi-function Vertical Prick Type Extraction Tank Finished Picture
