Stainless steel butterfly adopt clamp-style and round threaded, simple, beautiful shape, assembly and disassembly fast, switch quickly, flexible operation, low fluid resistance, safe and reliable. It can make up defects arising from traditional connection such as flange, pipe thread, trapezoidal screw thread. Can be used with all kinds of actuators. All steel parts are made from acid-resistant stainless steel materials, sealing face is made from food silicone rubber and PTFE, meeting food hygiene standard.
Directory
- Usages of Clamp-type Stainless Steel Butterfly
- Technical Parameters of Clamp-type Stainless Steel Butterfly
- Clamp-type Stainless Steel Butterfly Finished Picture
Usages of Clamp-type Stainless Steel Butterfly
This sanitary valve is widely used in food, wine, beverages, dairy products, fine chemicals pharmaceutical,bio-engineering and other industries.
Technical Parameters of Clamp-type Stainless Steel Butterfly
| Product Name: | Hot selling clamp-type stainless steel butterfly |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: |
120 degree C |
| Availably size: | DN10-DN300, 1/2"-12" |
| Availably connection: | Clamp / weld / thread/ weld thread/ flange |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual,Pneumatic, Electric |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle option: | pull handle, plastic/SS multi-positon handle |
| Handle application: | Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
| Packaging Details: | Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
| Delivery details: | Usually within 20 days after receiving T/T down payment. |

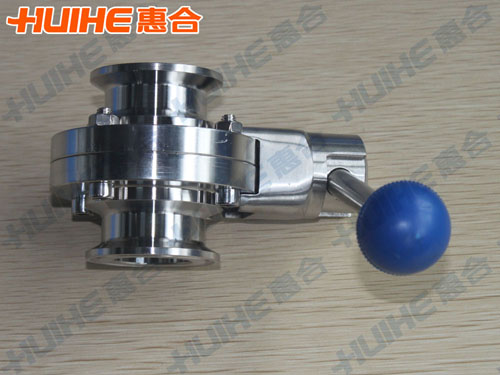

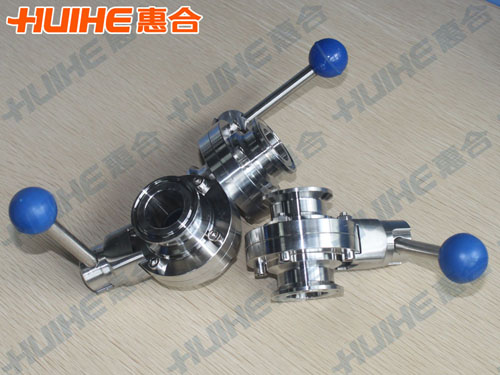

Clamp-type Stainless Steel Butterfly Finished Picture
Application
